SprinterArmor™ Ignition Module Protection Shield

Installation Manual

Vehicle Compatibility

  • Mercedes-Benz Sprinter VS30
  • Model years 2019–2026
  • Left-hand drive vehicles only

Purpose

The SprinterArmor™ Ignition Module Protection Shield is designed to protect the factory ignition (EZS) module from water, moisture, and condensation — common causes of corrosion and intermittent electrical faults.

This shield provides a durable, sealed, OEM-style solution without modifying the vehicle.

Tools Required

  • Torx T25 screwdriver
  • 10mm socket and ratchet
  • Phillips #2 screwdriver
  • Trim removal tool or small flat plastic pry tool
  • Clean rag (recommended)
No cutting, drilling, or permanent modifications required.

Estimated Installation Time

15–20 minutes


Installation Steps

Step 1: Power Down the Vehicle

  • Turn the ignition off.
  • Disconnect the negative cable at the factory disconnect point (VERY IMPORTANT).
  • Allow the vehicle to sit for at least 5 minutes.

Battery disconnect location


Step 2: Remove the Lower Dash Trim

  • Locate the driver-side floor covering holding bracket. Remove the two (2) Torx T25 screws, then remove the driver-side factory floor covering.

Floor covering bracket location

  • On the lower left side, locate the plastic panel that covers the left A-pillar and wheel well area (this panel includes the hood release handle).
  • Unscrew the hood release mechanism by removing one (1) T25 screw.
  • Remove the lower far-left dash panel.
  • Remove one (1) T25 screw from the OBD port/hood release cover panel.
  • Disconnect the OBD connector by clicking it out.
  • Gently pull the panel to the right to release it.

Dash panel removal


Step 3: Locate the Ignition (EZS) Module

  • The ignition module is mounted on the wheel arch support panel, secured with two plastic nuts. It has blue and white connectors attached.
  • Gently and carefully release the connectors from the module.
  • Use a plastic trim tool to pry the plastic nuts (along with the module) off the welded studs.
Note: If your module is already wrapped in a black plastic bag (common dealer repair), simply cut all zip ties and remove the module from the bag. Dispose of the bag.

Ignition module location


Step 4: Install the SprinterArmor™ Protection Shield

  • Position the shield base over the ignition module.
  • Ensure the wiring passes cleanly through the designated opening.
  • Seal both wiring harnesses (just after the connectors) with the supplied flexible rubber electrical tape — gently wrap around and squeeze to seal.
  • Position the ignition module inside the shield. Pay attention to alignment — the module should sit flush around the edge of the shield.
  • Install the cover and gently press it in so the alignment pins seat correctly.
  • The flexible TPU seal should compress slightly, forming a moisture barrier.
  • Once the back cover is installed, install and position Water Shield on top of the module and align it with the top hole

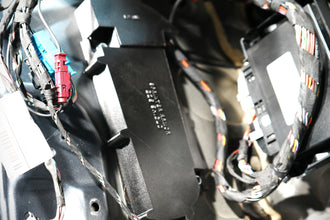

Shield installation

  • Install the supplied screw using a Phillips screwdriver.
  • Install the ignition module assembly back onto the vehicle:
    • Align the connectors with the blue connector side facing down and the white connector side facing up.
    • Align the top blue connector wiring alongside the Water Shield Guard
    • Route the wiring alongside the nearby CPC module.
    • Install two rubber tape seals right on the studs, secure the Shiueld with two 10mm nuts on the corresponding studs using a 10mm socket.
  • No excessive force should be required.


Step 5: Verify Fitment

Confirm the following:

  • The shield is fully seated
  • Wiring is not pinched or strained
  • All connectors remain fully engaged

Step 6: Reinstall Trim Panels and Floor Mat

  • Reinstall the lower dash panels.
  • Tighten Torx screws snugly (do not overtighten).
  • Reinstall the hood release mechanism.
  • Reinstall the driver floor mat.
  • Reconnect the ground cable at the factory disconnect point.

Step 7: Final Check

  • Start the vehicle.
  • Confirm normal ignition operation.
  • Verify no warning lights or error codes appear.

Installation is complete.


Notes & Recommendations

⚠️ Important Safety Notes:
  • Be extremely careful with the wiring throughout the installation process.
  • Never connect power, turn the ignition, or attempt to start the vehicle while the wiring is disconnected from the module.
  • Verify the blue TPU gasket sits correctly in its designated grooves before installing screws.
  • Verify Water Shield is correctly positioned and aligned properly.
  • Check for mold or corrosion on the ignition module connection points. Clean any mold or rust before reconnecting.
  • If an alignment pin is damaged during installation, the shield will still function correctly. The pins are used for positioning only and are not structural.
  • Don't forget to wrap the cables with the supplied flexible electrical tape.
  • Don't forget to install rubber pads on studs before installing nuts to secure the module.
  • Do not overtighten cover screws or stud nuts.
  • This product protects the ignition module from moisture exposure but does not repair existing wiring damage or active windshield/body leaks. Any ongoing leaks should be addressed separately.

Warranty & Support

SprinterArmor™ products are backed by a 2-year limited warranty.

If you have any questions during installation, contact us at:

www.sprinterarmor.com or message us directly through our support channels.
